SPECIFICATIONS

Application: Home

Battery Type: Lithium Ion, Lithium-ion

Battery Voltage Range (V): 40-60

Brand Name: NEO EDEN TECH

Charging Strategy for Li-ion Battery: Self-adaption to BMS

Communication Interface: RS485/RS232/CAN

Controller Type: MPPT

Free installation service: NO

Hign-concerned Chemical: None

Ingress Protection(IP) Rating: IP 65

Load Power (W): 3KW, 6kw, 8kw, 10KW, 5KW, 20KW, 30kw

Max. Efficiency: 97.6%

Model Number: CHN-16000HY-D

Mounting Type: Roof Mounting

Number of Battery Input: 1

Output Frequency: 50/60hz

Output Voltage (V): 220V/230

Pre-sales project design: Y

Solar Panel Type: Monocrystalline Silicon

Type of Cooling: Intelligent Air Cooling

Warranty: 5 Years/10 Years

Work Time (h): 24

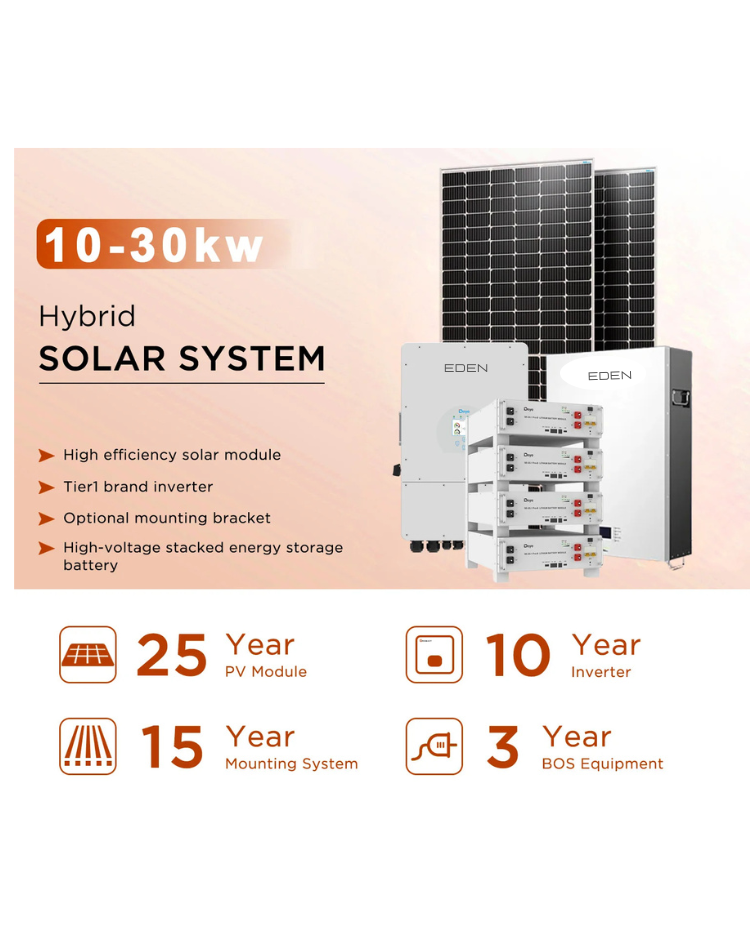

Product Description

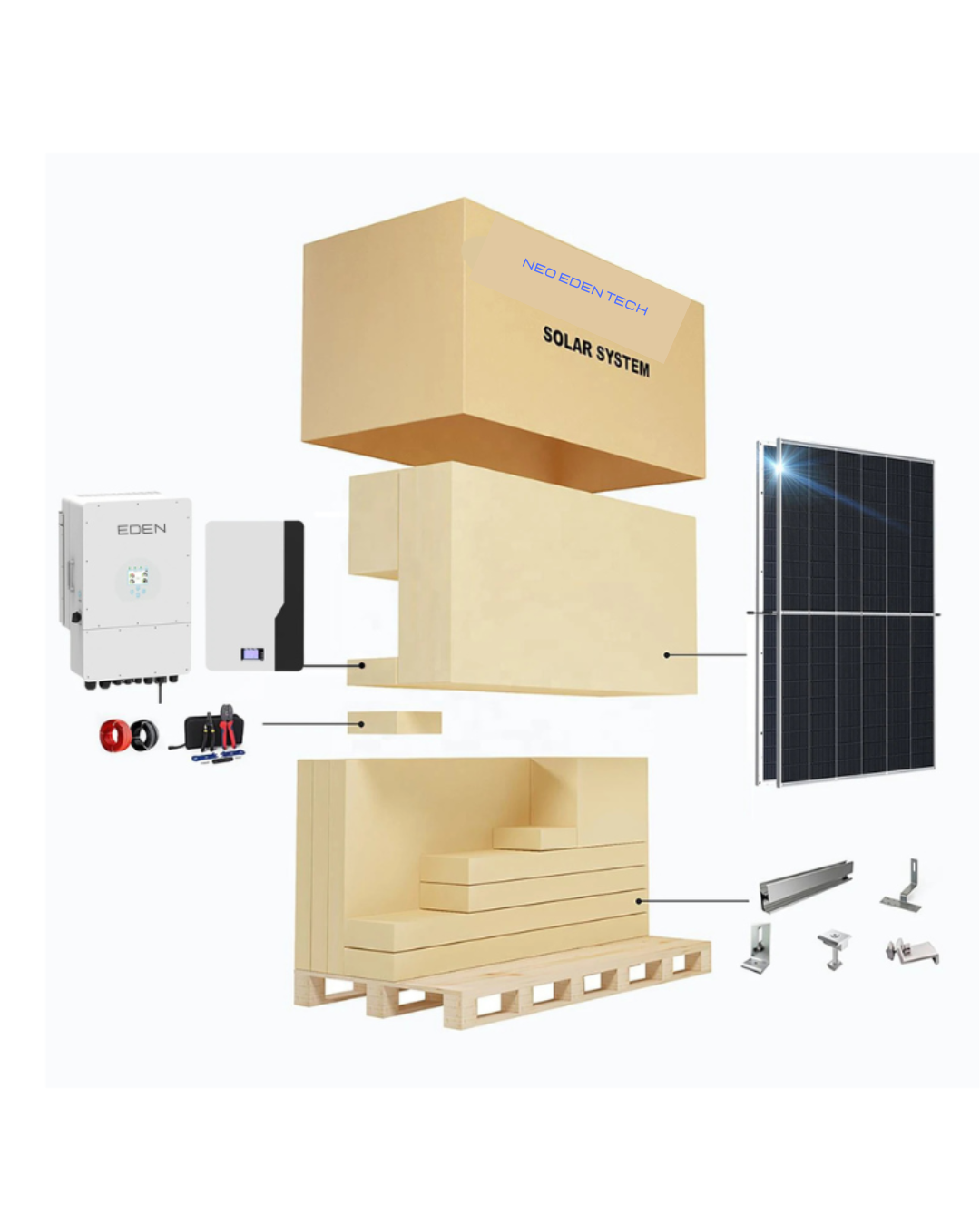

Components	OEM Energy Storage System  Hybrid Solution
Item	CHN-10000HY-D	CHN-12000HY-D	CHN-16000HY-D
Solar Panel 580W	18pcs	21pcs	28pcs
Deye Hybrid Inverter	SUN-10K-SG02LP1-EU-AM3	SUN-12K-SG02LP1-EU-AM3	SUN-16K-SG01LP1-EU
51.2V 100Ah LiFePO4 Battery	10.24KWH*1set	10.24KWH	20.48KWH
Mounting System	1 set
PV Cable	400M	400M	400M
PV Connectors	18pcs	21pcs	28pcs
Tools Bag	Wire Cable Cutter & Stripper, Crimping Pliers for PV Connectors (Opt)

Product Choose

Tier 1 Brand Monocrystalline half-cut single/double glass/all black/full screen solar panel

1. Positive Power Tolerance: 0~+5w;2. 100% EL Double-inspection Ensures Modules are Defects Free;
3. 5BB, 6BB, 9BB, 10BB, 12BB, MBB Available
4. 158.75mm, 166mm, 182mm, 210mm Size
5. Full Cell, Half Cut, 3-Cut;
6. Perc/HJT/All Black/Full Screen/Frameless Tech;
7. Modules Binned by Current to Improve System Performance;

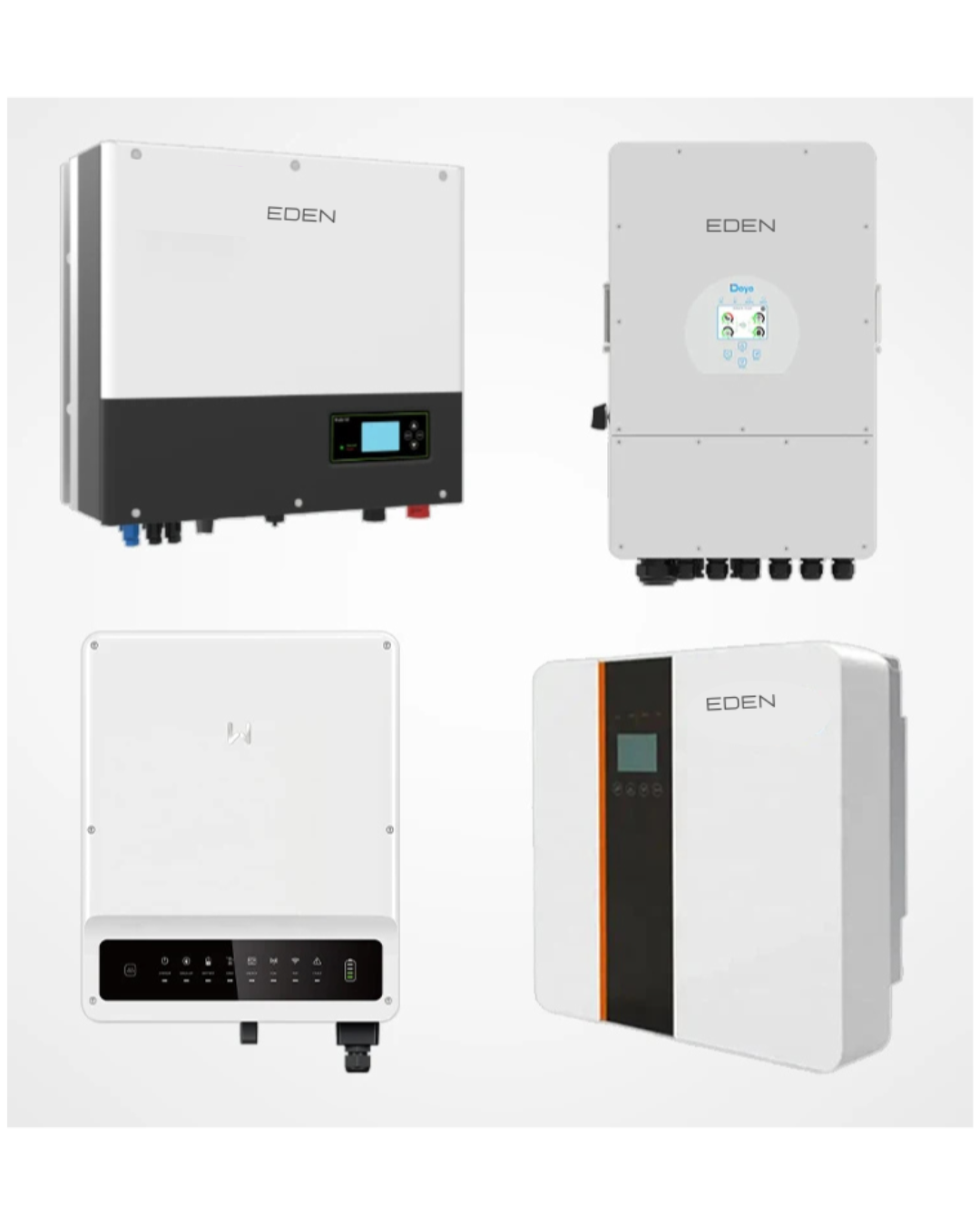

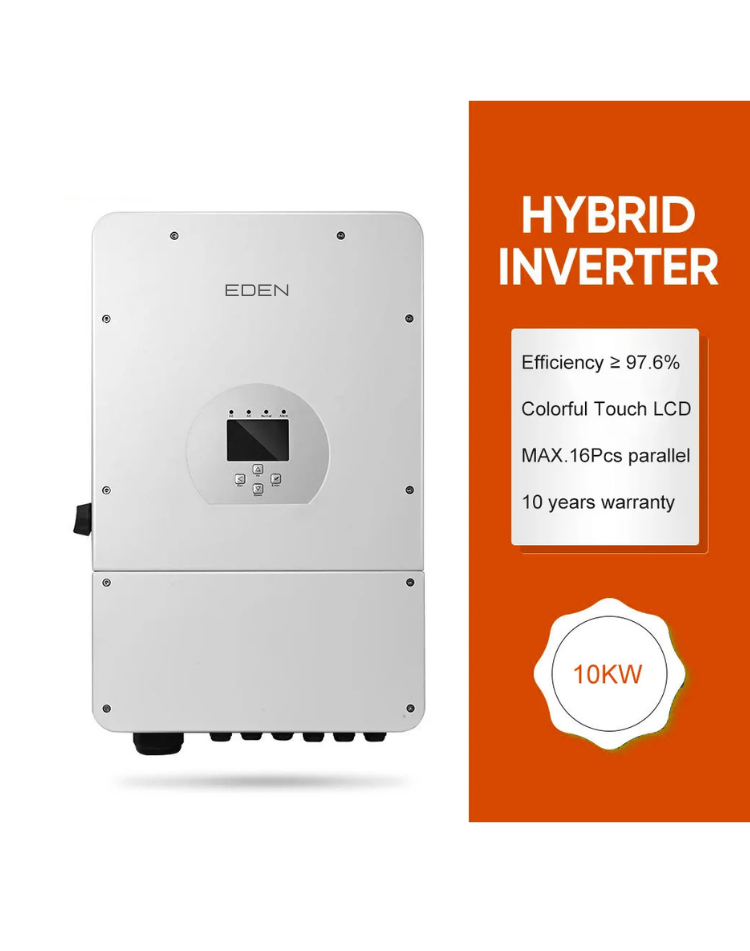

Hybrid Solar Inverters

1.Single-phase Inverter(5-8KW) ; Three-phase Inverter(6-100KW);
2. Support Multiple Machine Units;
3. Auto Restart while AC is Recovering;
4. Built-in MPPT Solar Charge Controller;
5. Compatible to Mains Voltage or Generator Power;
6. Selectable Input Voltage Range for Home Appliances and Personal Computers;
7. Configurable AC/Solar input Priority via LCD Setting..

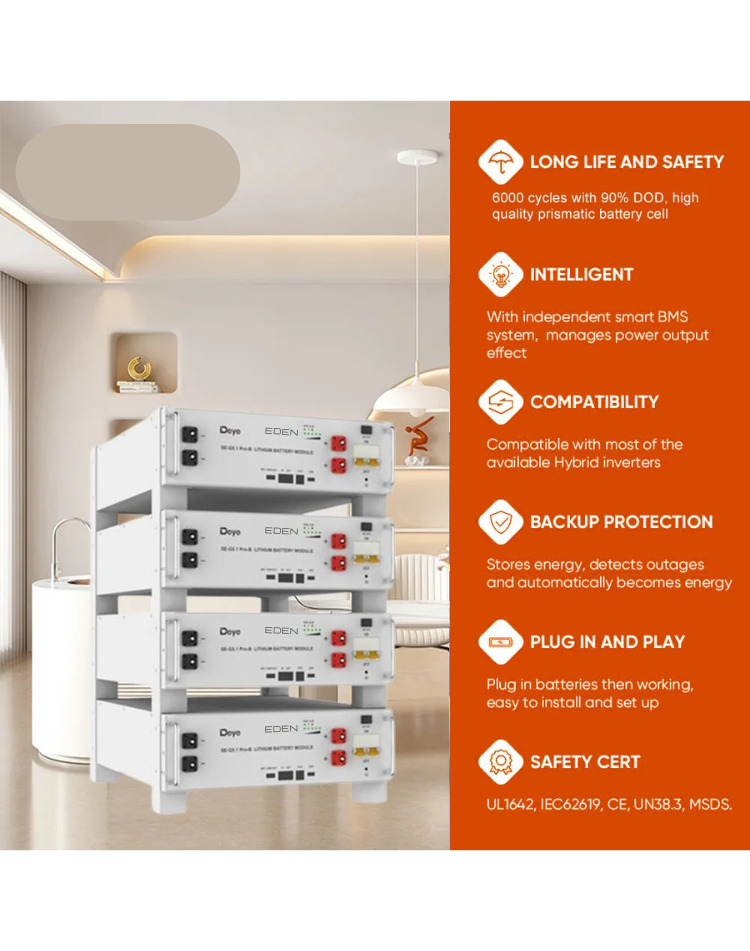

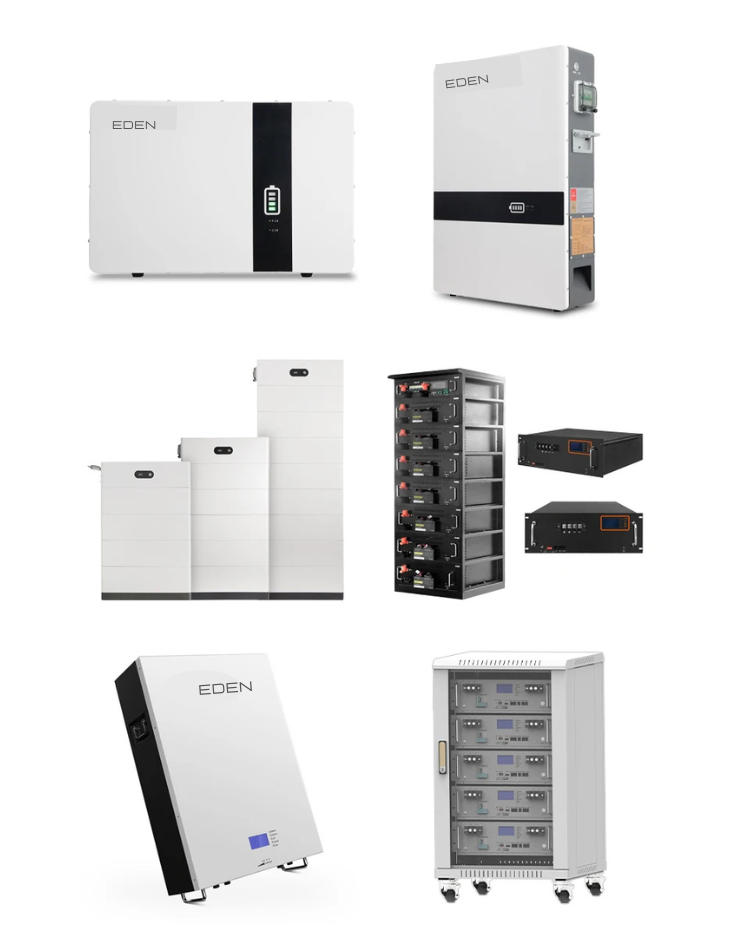

Solar Batteries

1. Deep Cycle Long Lifespan2. Stable High Discharge Performance;
3. Easy Installation and Maintenance-free;
4. Class A lithium Iron Phosphate Battery Type;
5. 12V/24V/48V/51.2V High Voltage Battery ;
6. More than 6000 times, up to 90% DOD;
7. Wide Suitability of Ambient Temperature Range ;
8. Maintenance is Simple, Reducing Deep Discharge.

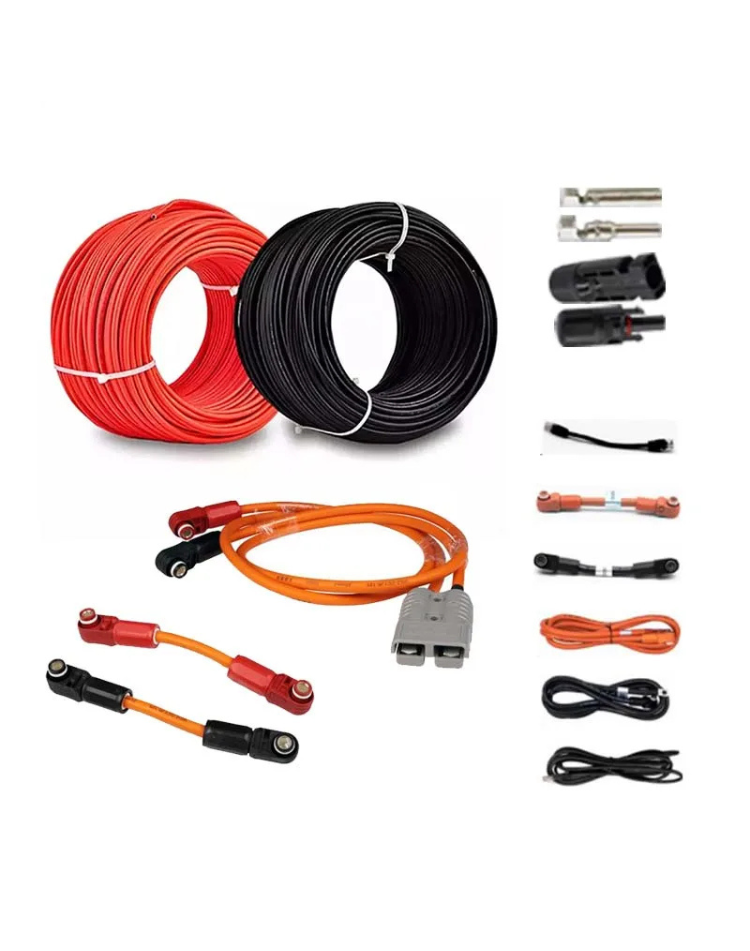

Solar System Accessories

1. Pin Diameter: 6mm;2. Degree of Proteetion: IP68;
3. Max System Voltage: 1000V;
4. Rated Current: 30A(4m3/6m3);
5. Excellent Resistance to U.V, Oil, Greases, Oxygen and Ozone;
6. Excellent Flexibility and Stripping;
7. High Voltage and Current Carring Capacity;
8. IP 65 Degree Lightning Protection.

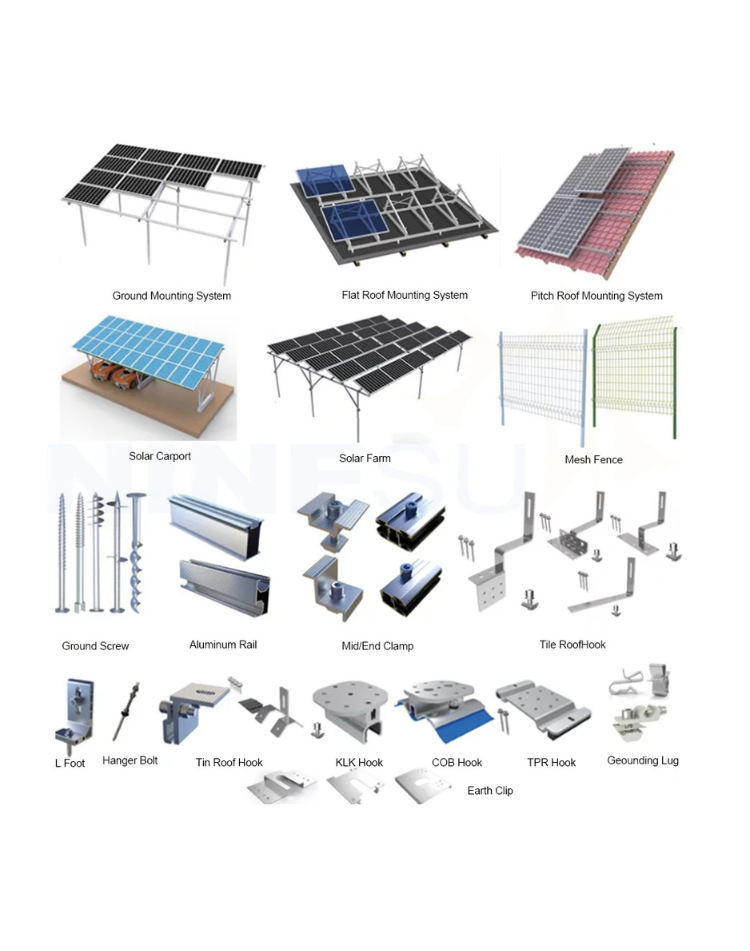

Solar Mounting Assembly

1. Ground Solar Mounting System;2. Residential Roof(Pitched Roof);
3. Car parking Solar Mounting System;
4. Vertical Wall Solar Mounting System;
5. Commercial Roof(Flat roof&workshop roof)
6. All Aluminum Structure Solar Mounting System;
7. Ballasted Mount, Do not Harm the Roof Structure.

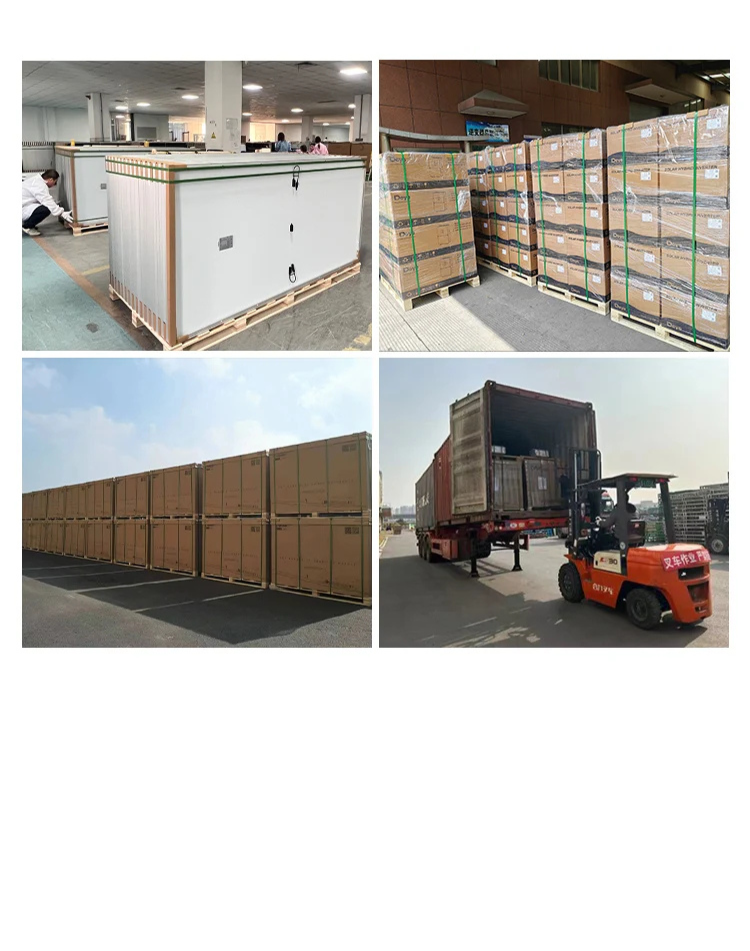

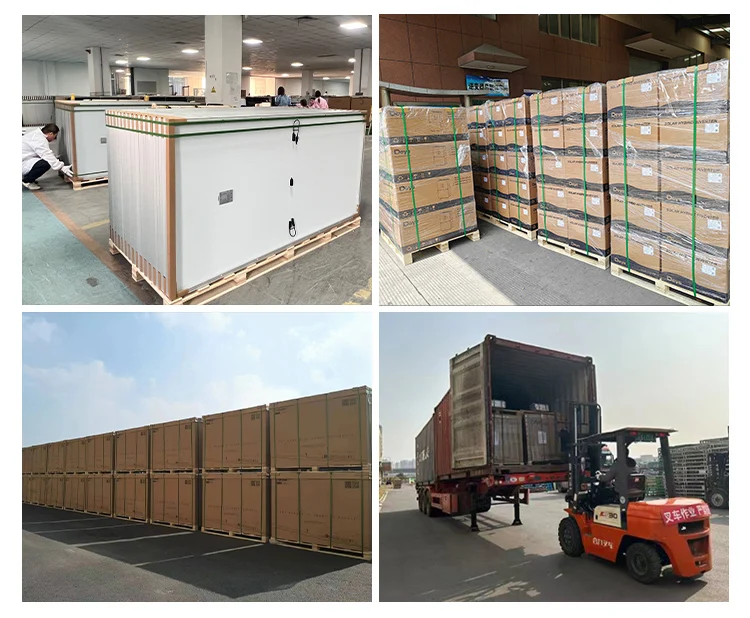

Packing & Shipping

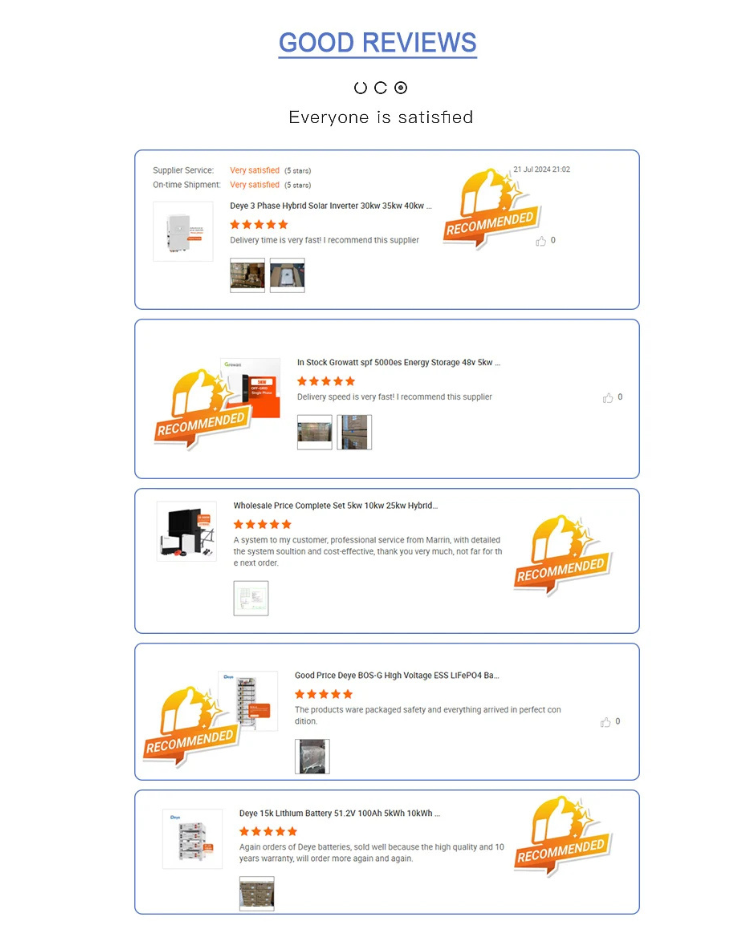

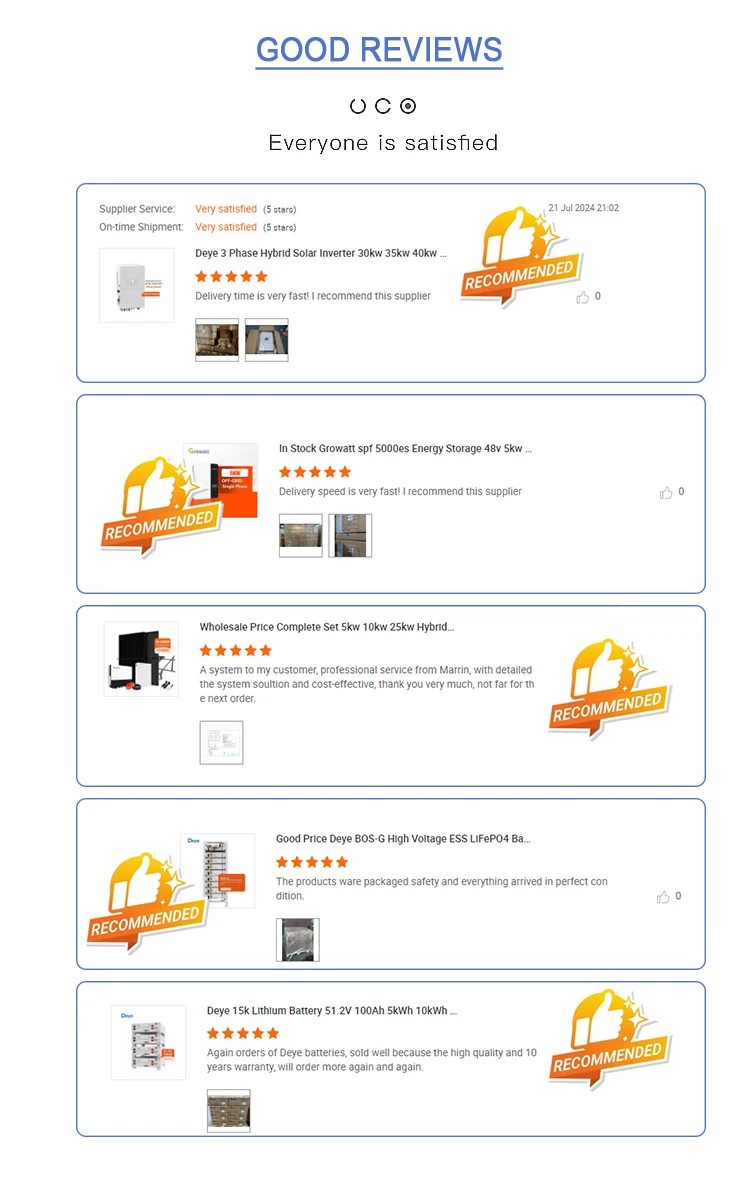

Customer Praise
