Application: Home

Battery Type: Lithium Ion, Lithium-ion

Battery Voltage Range (V): 40-60

Brand Name: EDEN TECH

Charging Strategy for Li-ion Battery: Self-adaption to BMS

Communication Interface: RS485/RS232/CAN

Controller Type: MPPT

Free installation service: NO

Hign-concerned Chemical: None

Ingress Protection(IP) Rating: IP 65

Load Power (W): 3KW, 6kw, 8kw, 10KW, 5KW, 20KW, 30kw

Max. Efficiency: 97.6%

Model Number: CHN-16000HY-D

Mounting Type: Roof Mounting

Number of Battery Input

Output Frequency: 50/60hz

Output Voltage (V): 220V/230

Pre-sales project design: Y

Solar Panel Type: Monocrystalline Silicon

Type of Cooling: Intelligent Air Cooling

Warranty: 5 Years/10 Years

Work Time (h): 24

Product Description

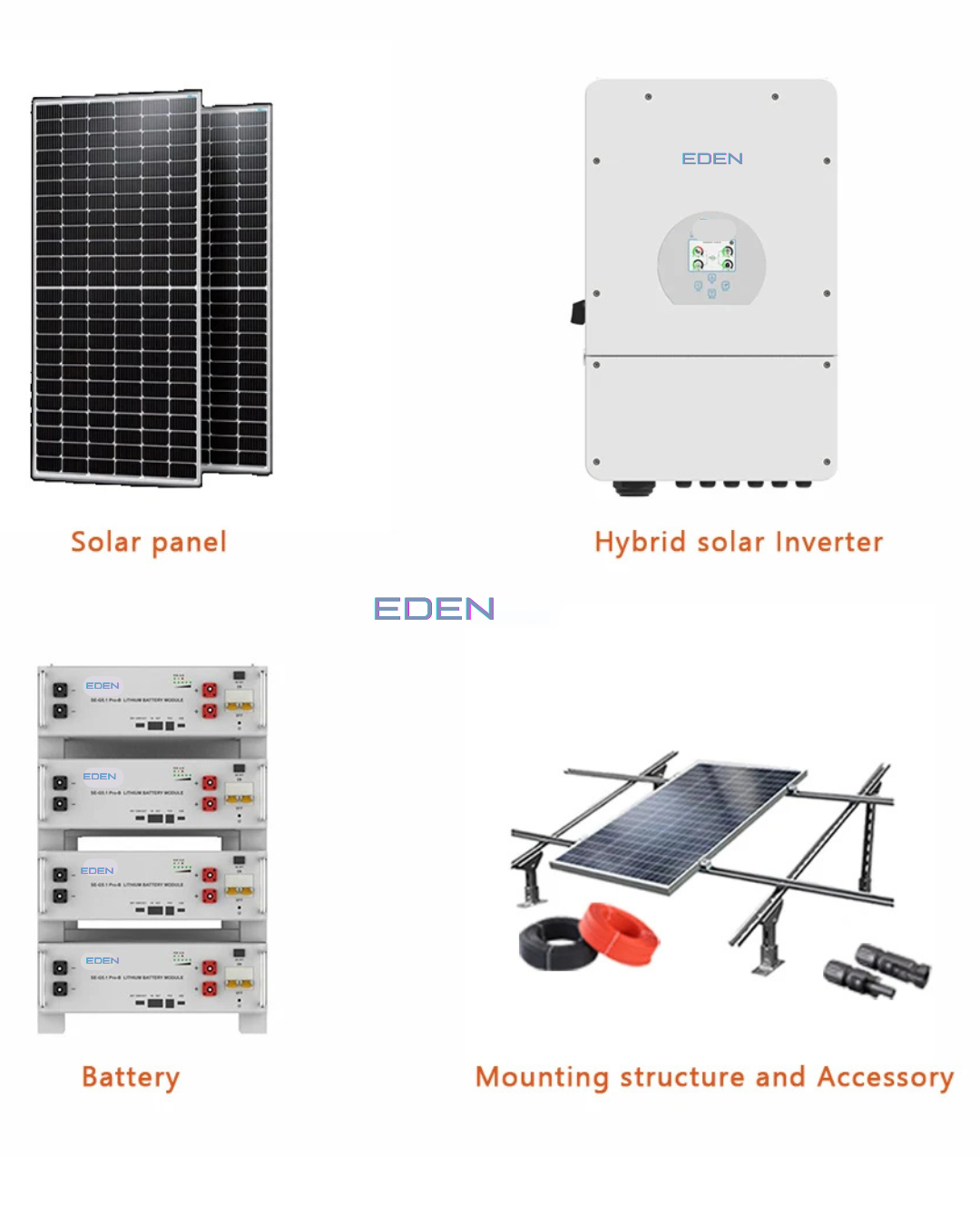

Components	EDEN TECH Energy Storage System  Hybrid Solution
Item	CHN-10000HY-D	CHN-12000HY-D	CHN-16000HY-D
Solar Panel 580W	18pcs	21pcs	28pcs
Deye Hybrid Inverter	SUN-10K-SG02LP1-EU-AM3	SUN-12K-SG02LP1-EU-AM3	SUN-16K-SG01LP1-EU
51.2V 100Ah LiFePO4 Battery	10.24KWH*1set	10.24KWH	20.48KWH
Mounting System	1 set
PV Cable	400M	400M	400M
PV Connectors	18pcs	21pcs	28pcs
Tools Bag	Wire Cable Cutter & Stripper, Crimping Pliers for PV Connectors (Opt)

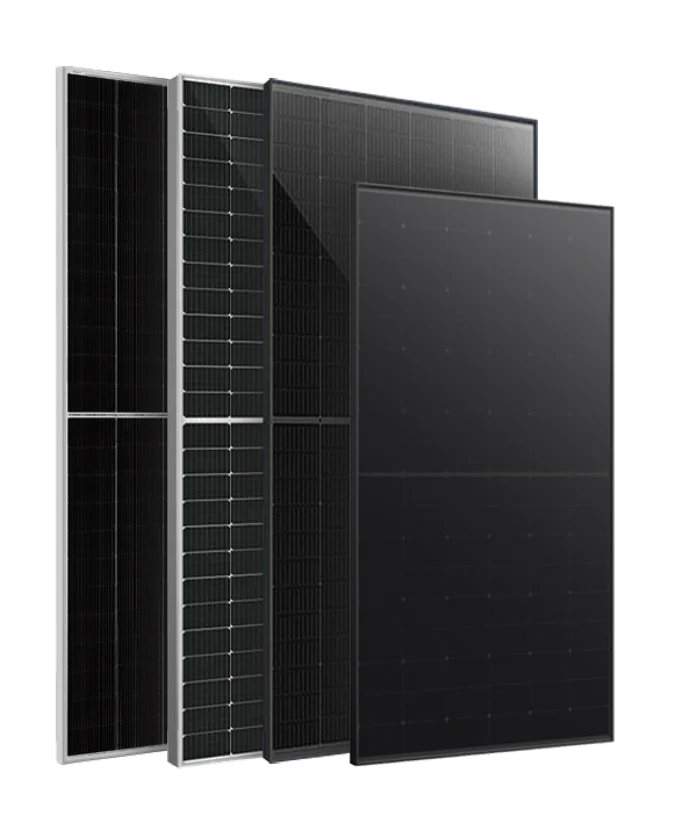

Tier 1 Brand Monocrystalline half-cut single/double glass/all black/full screen solar panel

1. Positive Power Tolerance: 0~+5w;2. 100% EL Double-inspection Ensures Modules are Defects Free;
3. 5BB, 6BB, 9BB, 10BB, 12BB, MBB Available
4. 158.75mm, 166mm, 182mm, 210mm Size
5. Full Cell, Half Cut, 3-Cut;
6. Perc/HJT/All Black/Full Screen/Frameless Tech;
7. Modules Binned by Current to Improve System Performance;

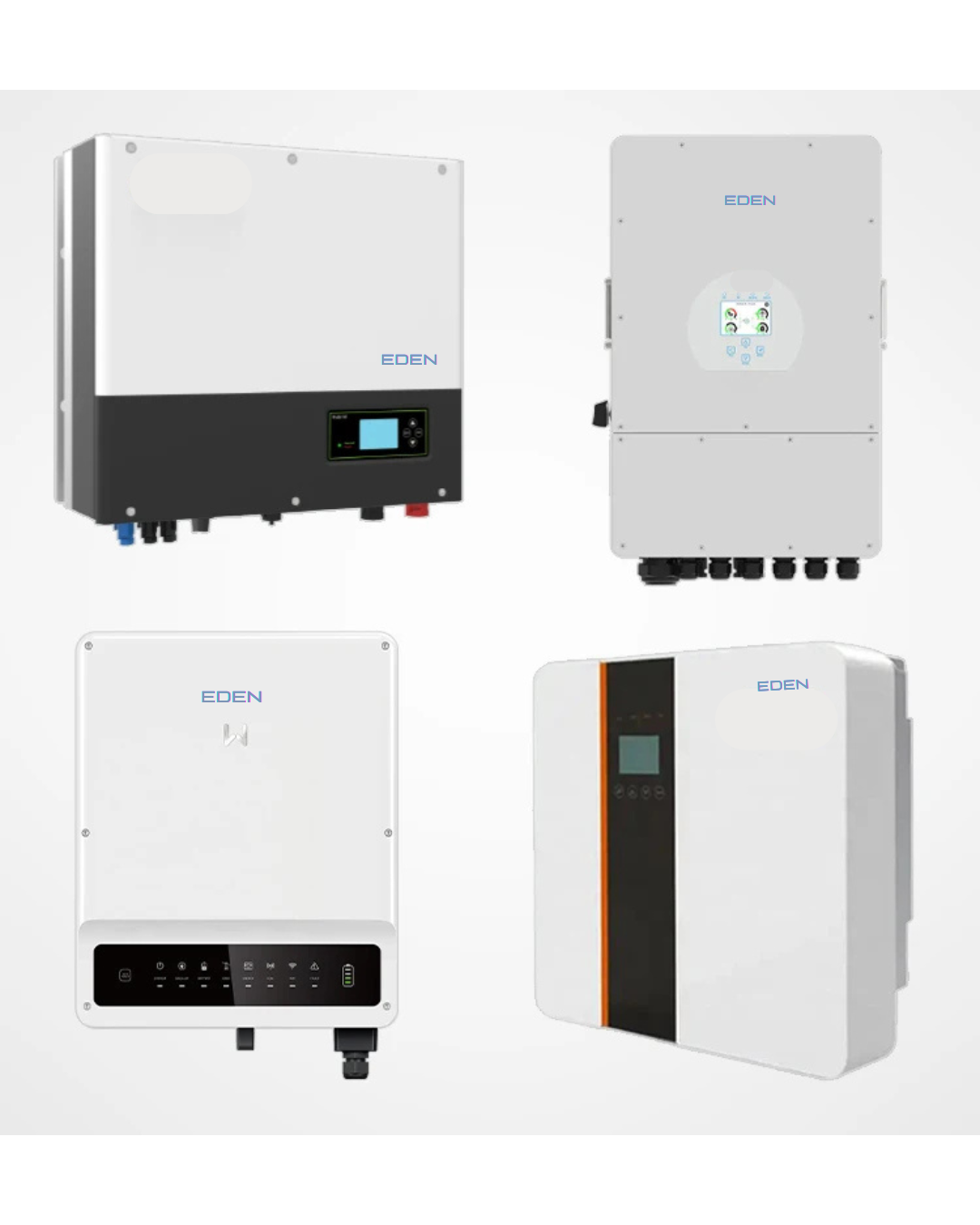

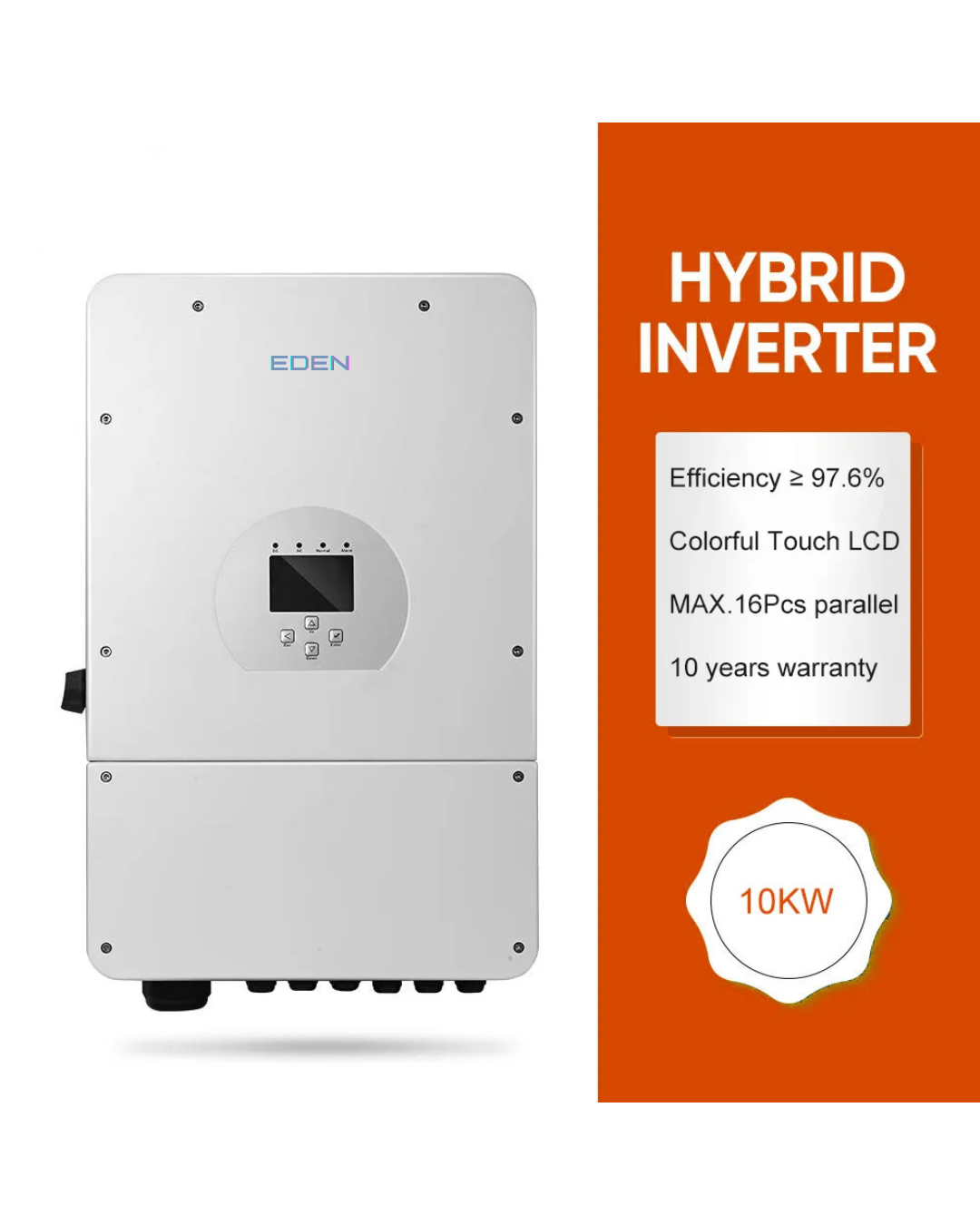

Hybrid Solar Inverters

1.Single-phase Inverter(5-8KW) ; Three-phase Inverter(6-100KW);
2. Support Multiple Machine Units;
3. Auto Restart while AC is Recovering;
4. Built-in MPPT Solar Charge Controller;
5. Compatible to Mains Voltage or Generator Power;
6. Selectable Input Voltage Range for Home Appliances and Personal Computers;
7. Configurable AC/Solar input Priority via LCD Setting..

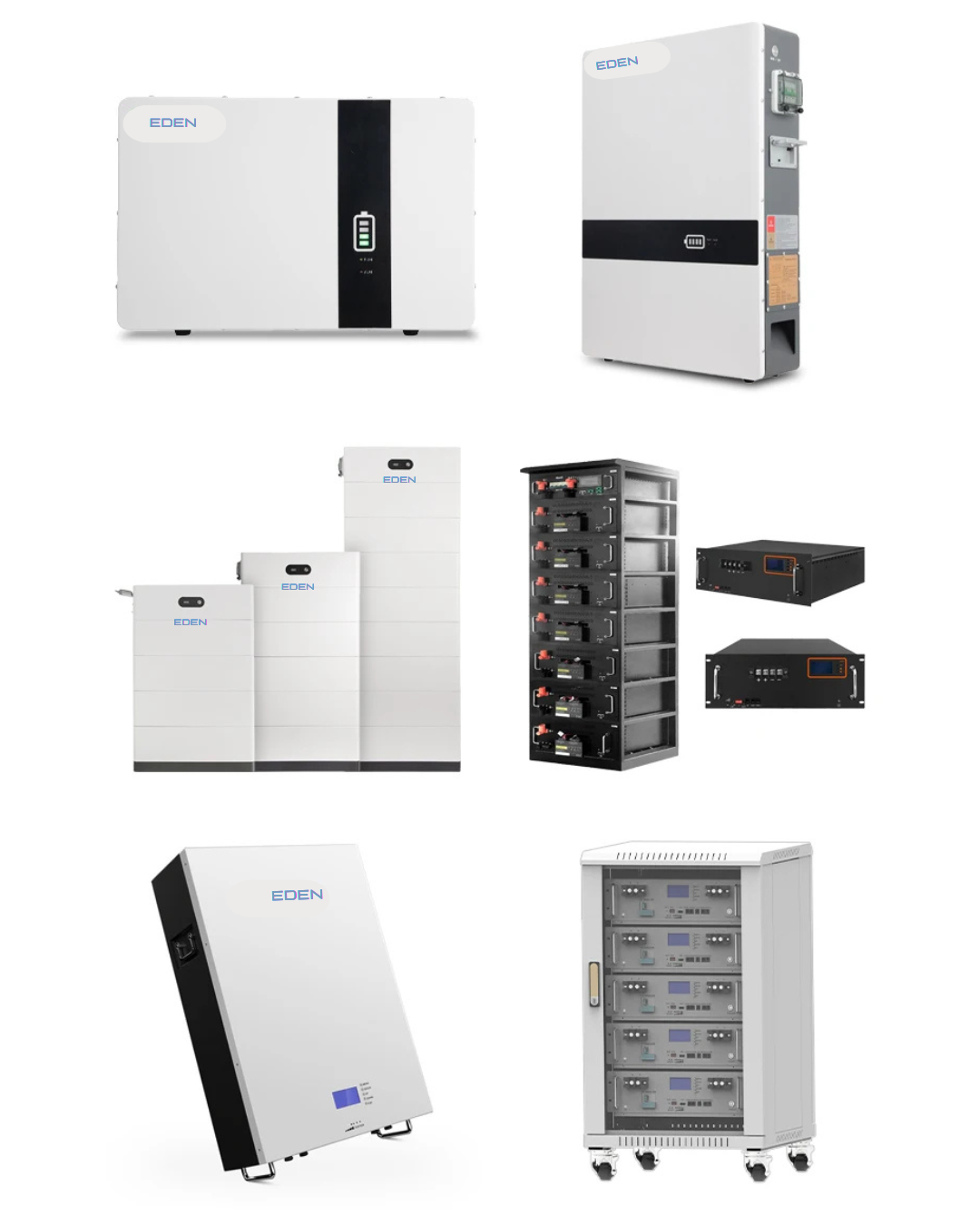

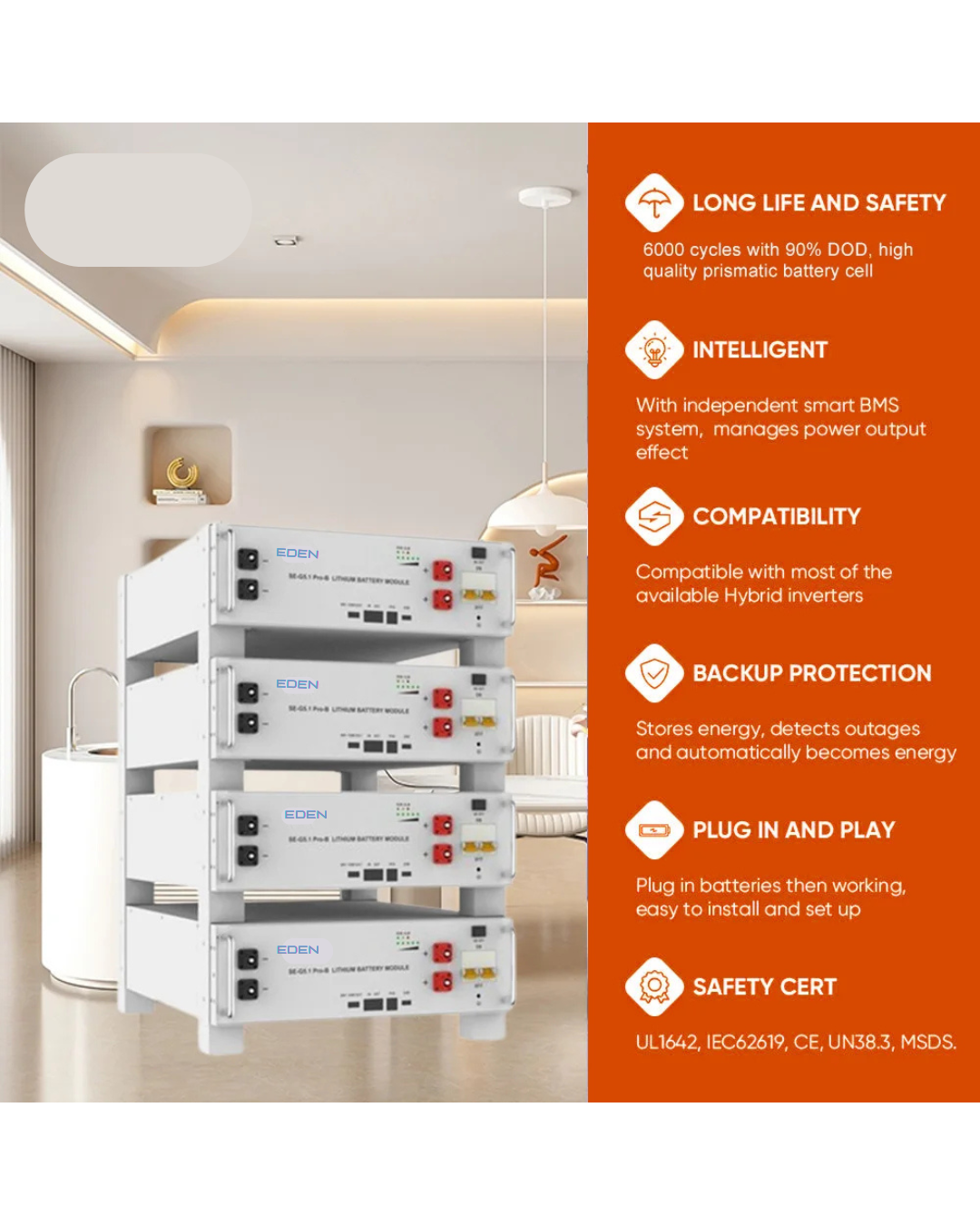

Solar Batteries

1. Deep Cycle Long Lifespan2. Stable High Discharge Performance;
3. Easy Installation and Maintenance-free;
4. Class A lithium Iron Phosphate Battery Type;
5. 12V/24V/48V/51.2V High Voltage Battery ;
6. More than 6000 times, up to 90% DOD;
7. Wide Suitability of Ambient Temperature Range ;
8. Maintenance is Simple, Reducing Deep Discharge.

Solar System Accessories

1. Pin Diameter: 6mm;2. Degree of Proteetion: IP68;
3. Max System Voltage: 1000V;
4. Rated Current: 30A(4m3/6m3);
5. Excellent Resistance to U.V, Oil, Greases, Oxygen and Ozone;
6. Excellent Flexibility and Stripping;
7. High Voltage and Current Carring Capacity;
8. IP 65 Degree Lightning Protection.

Solar Mounting Assembly

1. Ground Solar Mounting System;2. Residential Roof(Pitched Roof);
3. Car parking Solar Mounting System;
4. Vertical Wall Solar Mounting System;
5. Commercial Roof(Flat roof&workshop roof)
6. All Aluminum Structure Solar Mounting System;
7. Ballasted Mount, Do not Harm the Roof Structure.

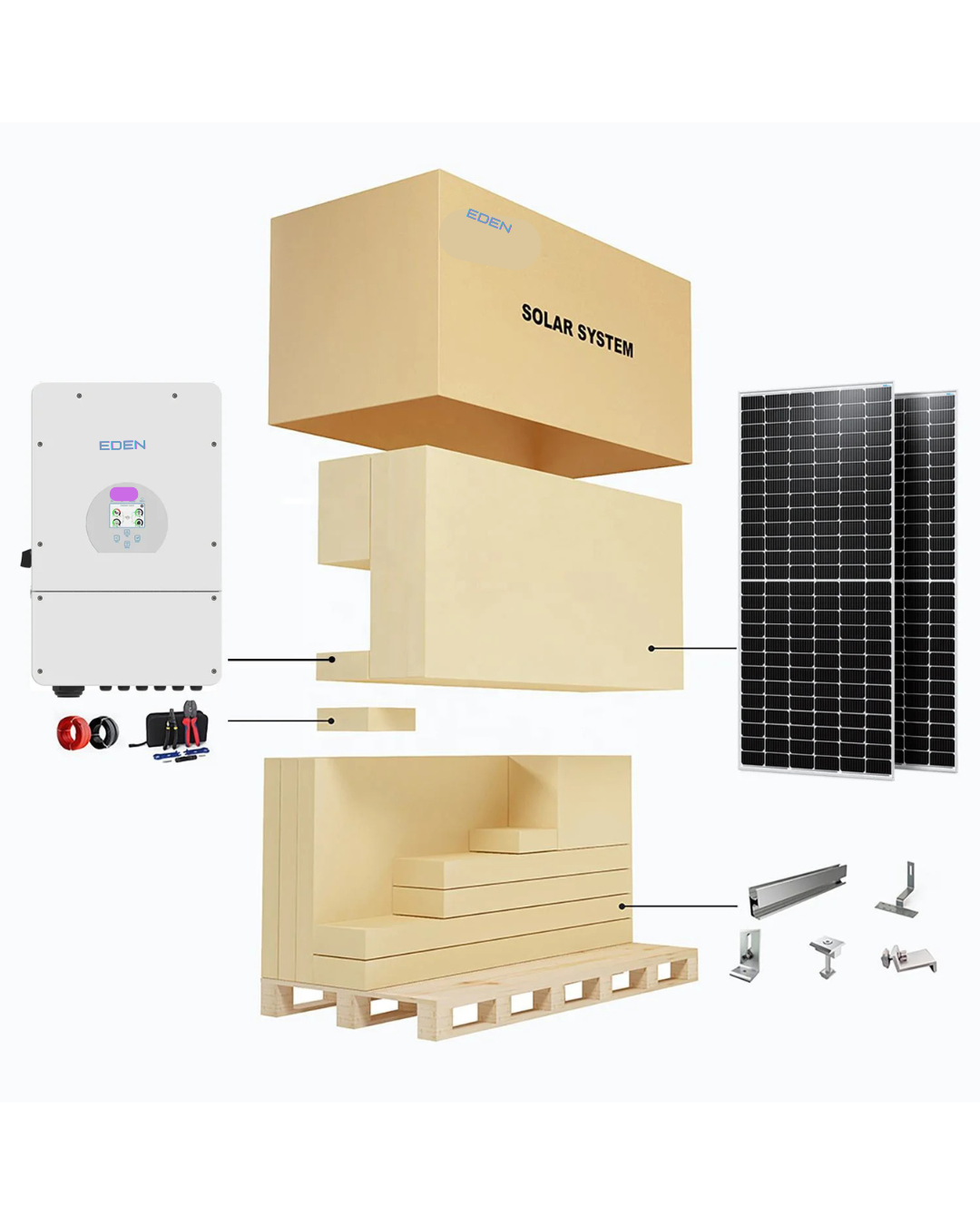

Packing & Shipping

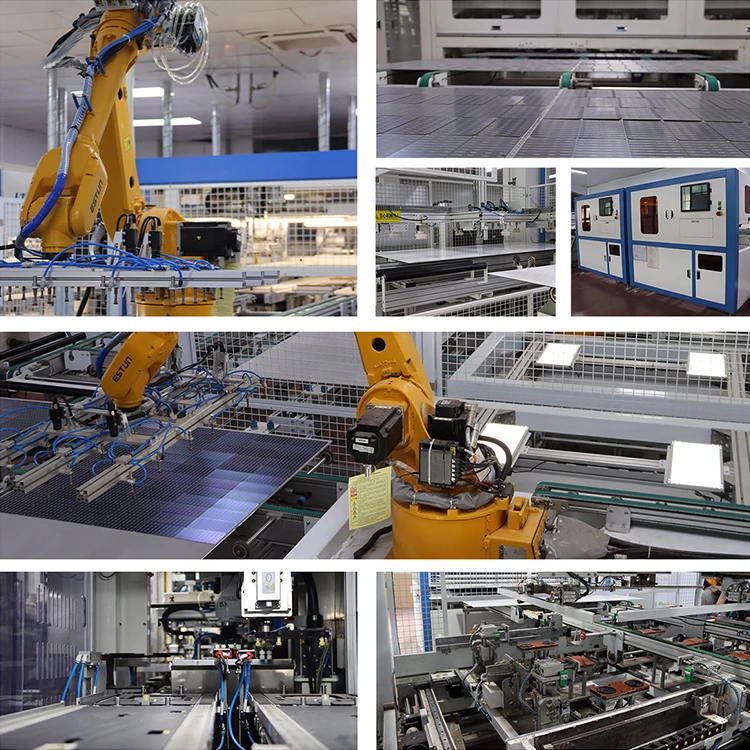

Production Line

We are a fully integrated solar company, combining manufacturing and trading under one roof. This allows us to control the entire supply chain, ensuring the quality and reliability of our products from start to finish. We offer a complete range of solar solutions, all backed by our commitment to excellence.

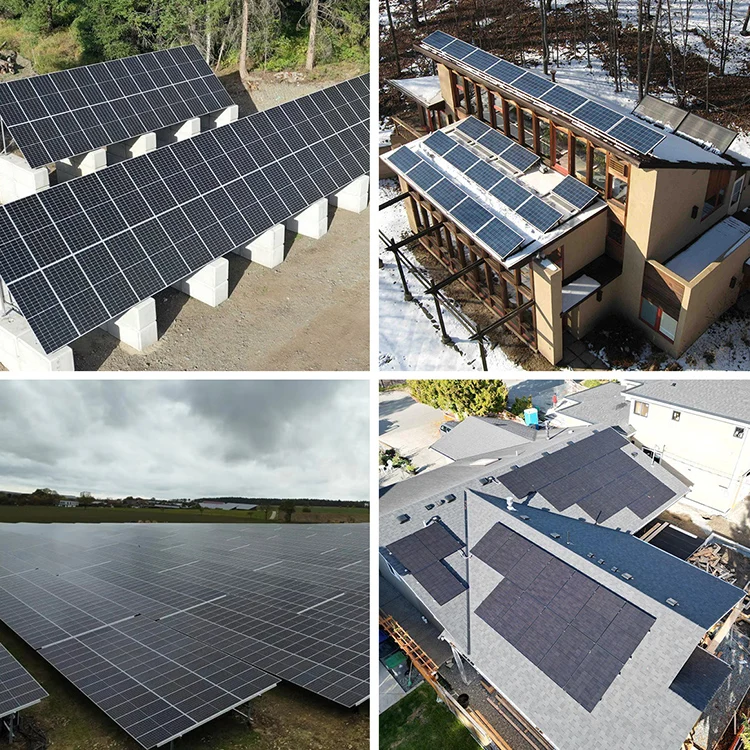

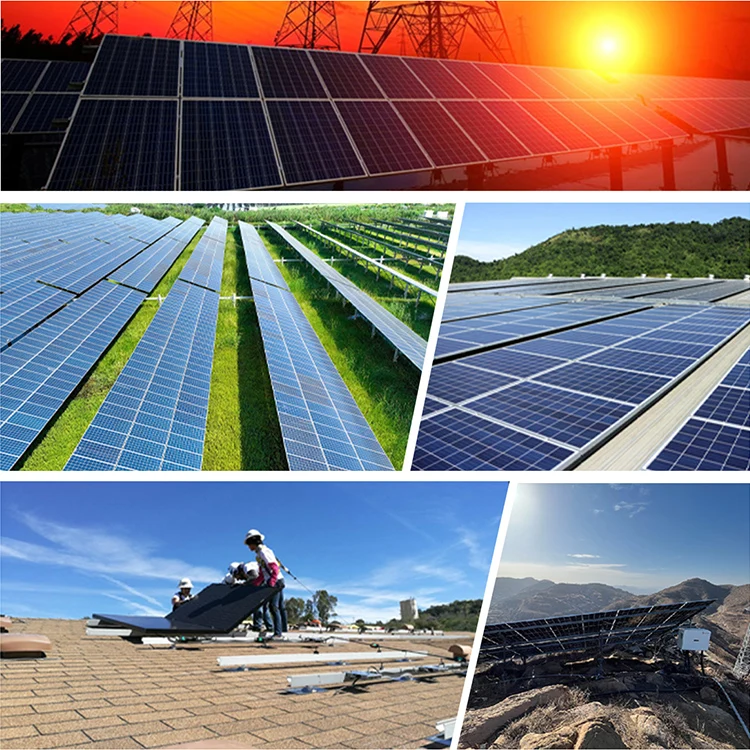

Project Cases

We are a global solar energy company, with projects spanning the globe. We have a proven track record of delivering high-quality solar solutions that meet the needs of our clients, regardless of their location. Our team of experienced professionals is committed to providing exceptional customer service and support.
