SPECIFICATIONS

Application: Water Treatment

Brand: EDEN TECH

Capacity: 250L, 500L, 1T, 2T and more

Certification: CE ISO9001

Filter Media: sand, carbon, resin, membrane

Material: Stainless Steel

Model: manual, automatic

Power(W): 800 W

Processing Type: Softening,Reverse Osmosis,desalination,Filtration,Ion Exchange

Product name: RO SYSTEM

Type: RO, UF, sea water,EDI

Voltage: 220 V,380 V,110 V,380v/220v

core components: Gearbox,Pressure Vessel,Pump,Gear,Bearing,Engine,Motor,PLC

machinery test report: Provided

productivity: 1000L/Hour

video outgoing-inspection: Provided

warranty: 1 Year

weight (kg): 200

Product Description

RO Filtration System

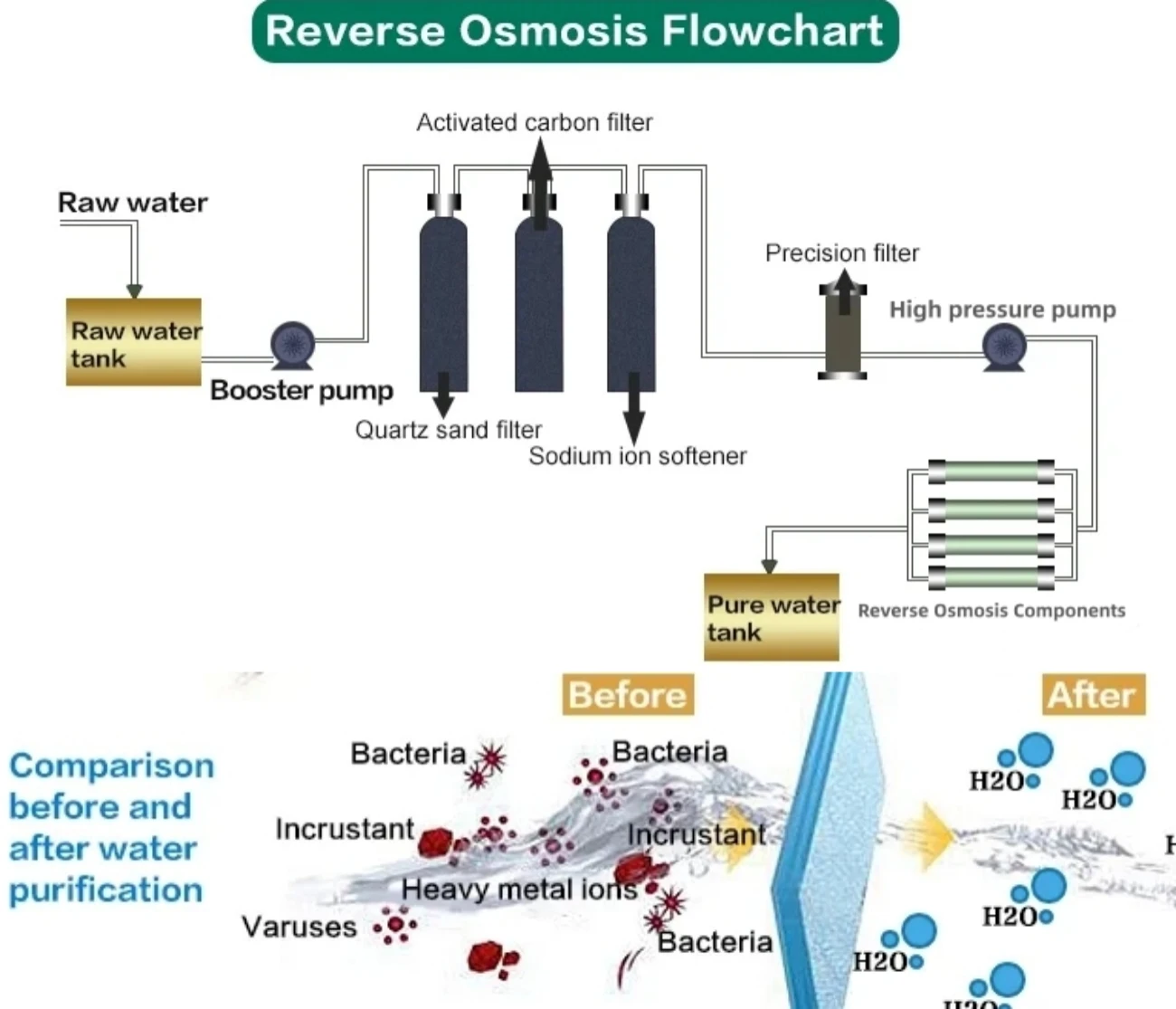

Raw water source: Bore whole, river, well, mountain spring, lake, etc Raw water pump/multi pump: Nanfang, Shimge Filter media: Quartz sand filter, active carbon filter, security filter( PP filter) RO Membrane: Frotec, Filmtec Dow, Hydranautics,Huamo Working process 1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter. 2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, etc. 3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc. 4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method. 5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um, 6. High pressure pump-- Provide the high pressure to RO membrane ro. 7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions

Specification

Model	RO-250L	RO-500L	RO-1000L	2T-10T
Water capacity	1500GPD(250LPH)	3000GPD (500LPH)	6000GPD(1000LPH)	more
Ro membrane qty	1pcs	2pcs	4pcs	more
Recovery rate	15%-50%	25%-75%	45%-75%	more
Power consumption	0.8kw.h/m3	1.2kw.h/m3	1.25kw.h/m3	more
Power supply	380V/220V	380V/220V	380V/220V	more
Dimensions  (W x D x H)	0.7x0.5x1.3m	0.9x0.5x1.3m	0.9x0.7x1.3m	more
Gross Weight	60KG	70KG	90KG	more
