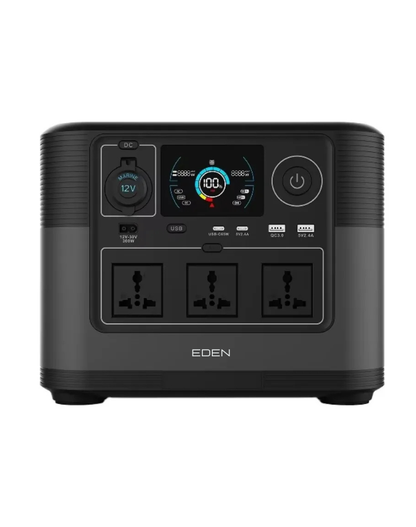

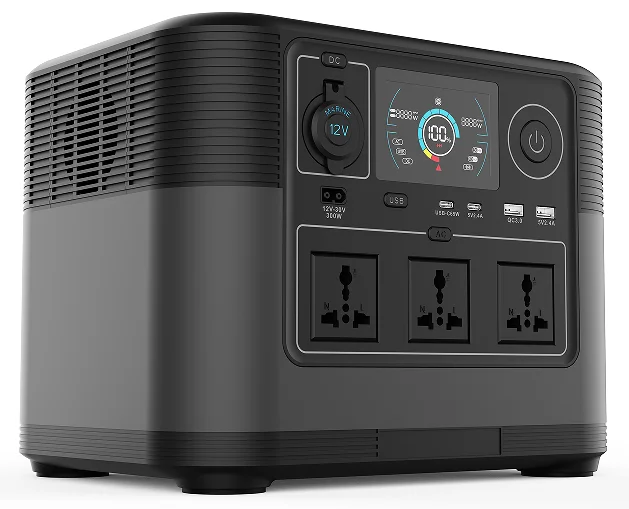

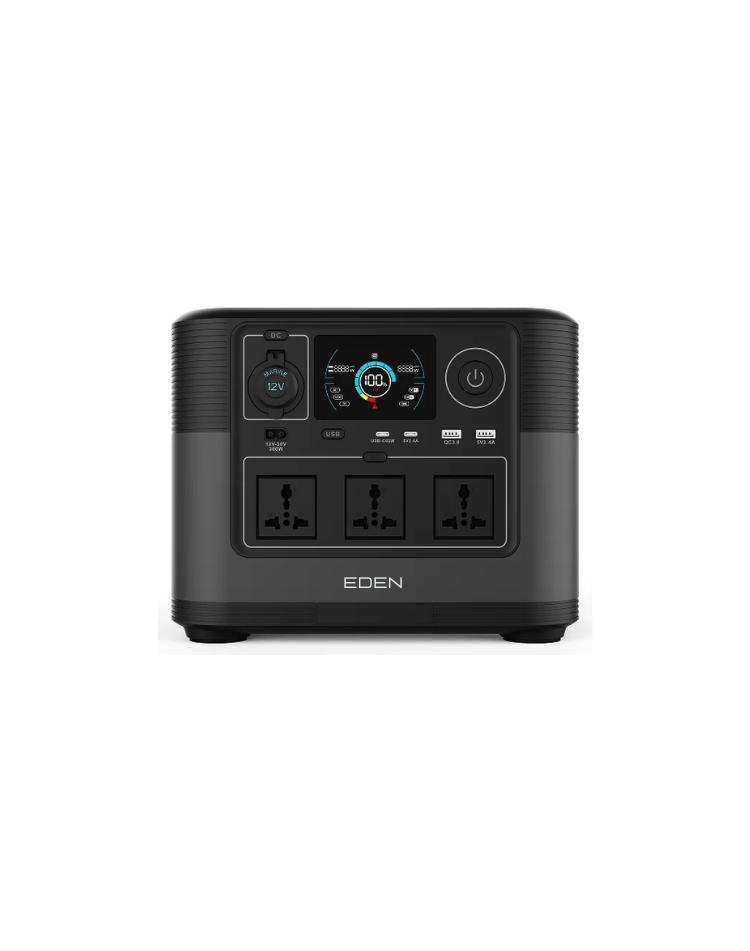

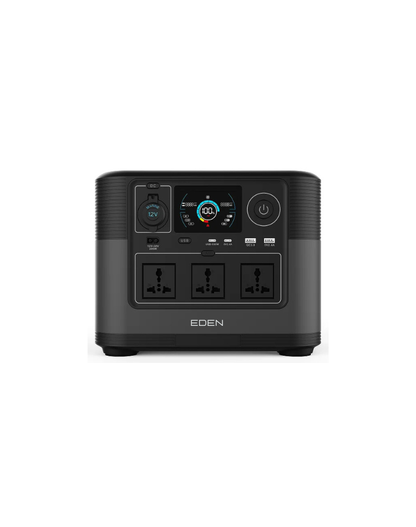

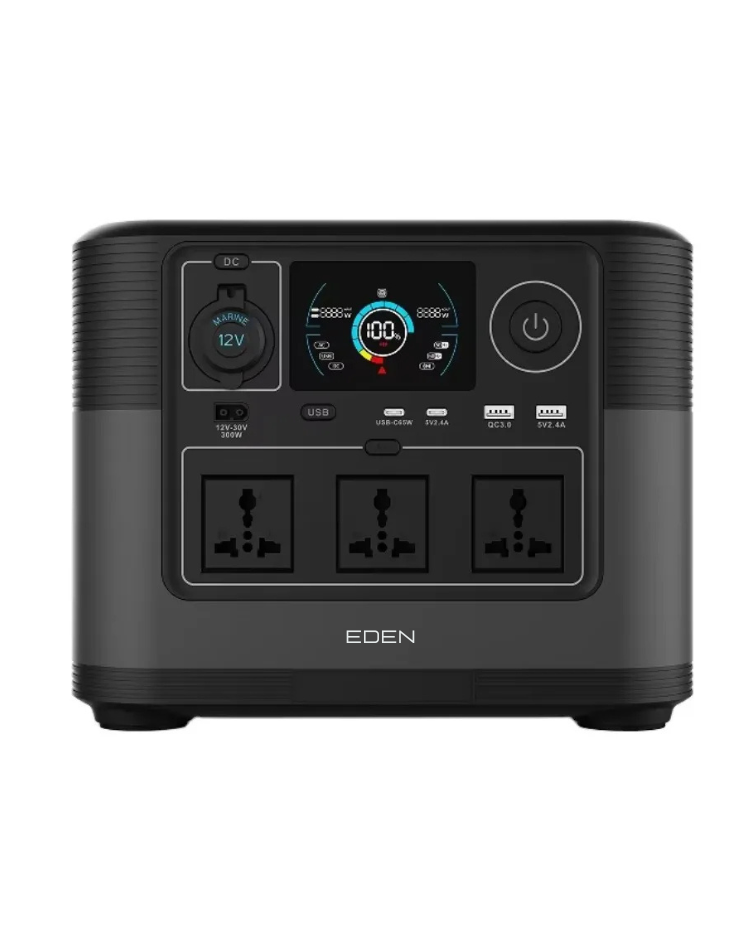

NEO EDEN TECH Lithium Solar Energy System 1200 W 1008 WH Portable Power Station Outdoor Power Supply,Mini Solar Power Station
NEO EDEN TECH Lithium Solar Energy System 1200 W 1008 WH Portable Power Station Outdoor Power Supply,Mini Solar Power Station
Regular price
$980.00 USD
Regular price
$1,200.00 USD
Sale price
$980.00 USD
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Battery Type: LiFePO4
Battery capacity: 1008WH
Battery parameters: 45AH
Brand Name: NEO EDEN TECH
Certificate: CE, FCC, PSE, EMC, ROHS,UN38.3
Controller Type: MPPT
Free installation service: Yes
Hign-concerned Chemical: None
Inverter Type: Pure Sine Wave
Model Number: M9
Output Frequency: 50-60HZ
Power Source: AC Adaptor, Car, Solar Panel, Other
Product name: Portable Power Stations

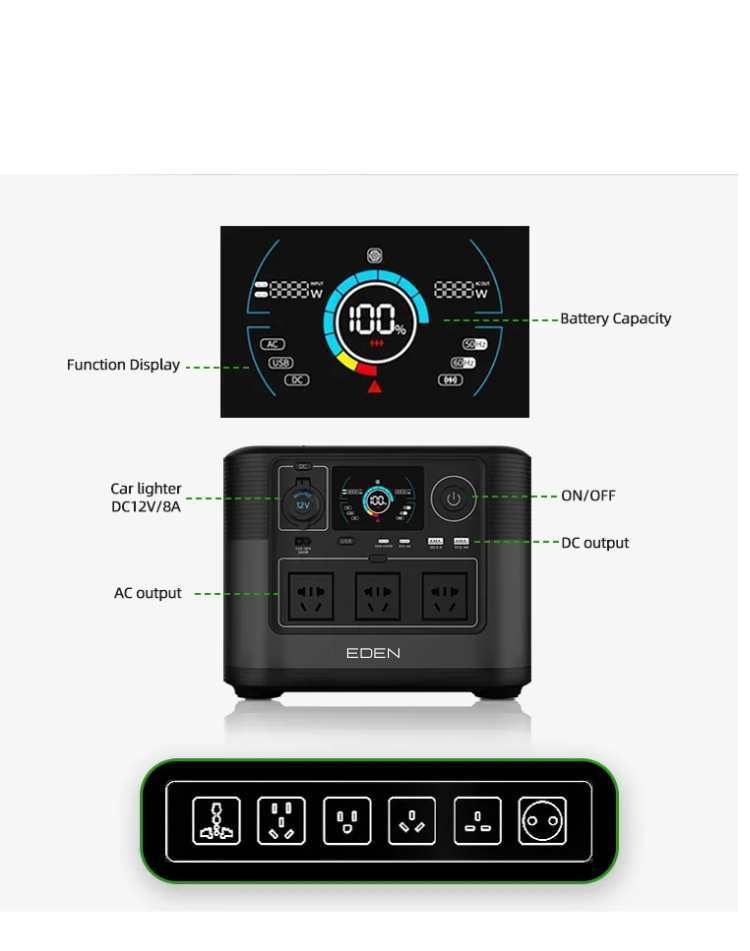

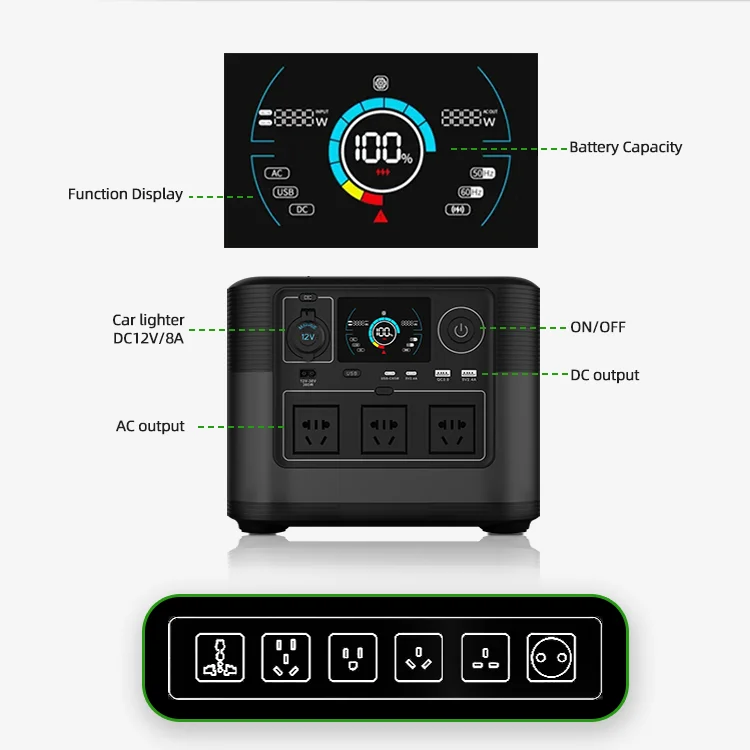

Special Features: Wireless Charging, Type C, jump starter, Cigar Lighter
Warranty: 1YEARS, 1-Year Limited Warranty
Weight: 10.2KG
rated voltage: 22.4V
|
Project
|
Minimum
|
Standard
|
Maximum
|
Remarks
|
|
Battery parameters
|
---
|
45AH
|
---
|
Lithium iron phosphate 7 series 3 parallel 15000 MAH
|
|
Rated voltage
|
---
|
22.4V
|
---
|
7 series
|
|
Battery capacity
|
---
|
1008WH
|
---
|
depending on single cell capacity
|
|
Protection board control mode
|
---
|
---
|
---
|
charging and discharging negative electrode control at the same port
|
|
Output short circuit protection
|
---
|
Support
|
---
|
When a short circuit occurs at the protection board end, the output will be turned off and activated by charging
|
|
Charging input voltage
|
11V
|
/
|
28V
|
supporting various charging methods such as car charging and photovoltaic panels
|
|
Charging current
|
/
|
7.5A
|
9A
|
maximum support for 400W charging
|
|
Charging overvoltage protection
|
29
|
30
|
31
|
|
|
Charging conversion efficiency
|
85%
|
---
|
---
|
test the efficiency of the board end under the condition of input 30V and battery voltage of 48V.
|
|
Input polarity reversal protection
|
---
|
Support
|
---
|
Unable to charge when input polarity is reversed
|
|
Car charging
|
---
|
Support
|
---
|
12V charging current of 10A
|
|
MPPT solar charging
|
---
|
Support
|
---
|
Maximum support for 200W solar charging
|
|
ated output voltage
|
200Vac
|
220Vac
|
240Vac
|
rated resistive load
|
|
Output waveform
|
---
|
sine wave
|
|
rated resistive load
|
|
Output frequency switching
|
---
|
YES
|
---
|
When AC is off, press and hold the "AC" button for 3 seconds to
automatically switch between 50Hz or 60Hz |
|
Average no-load loss
|
---
|
---
|
25W
|
AC startup state, output voltage, no load
|
|
Sleep loss
|
---
|
|
3W
|
AC shutdown state
|
|
Rated output power
|
|
1200W
|
---
|
|
|
Output power factor
|
0.95
|
---
|
1
|
resistive load
|
|
Efficiency
|
---
|
90%
|
---
|
rated input, rated load, testing requirements: average efficiency at four
points of load current 25%, 50%, 75%, and 100% |
